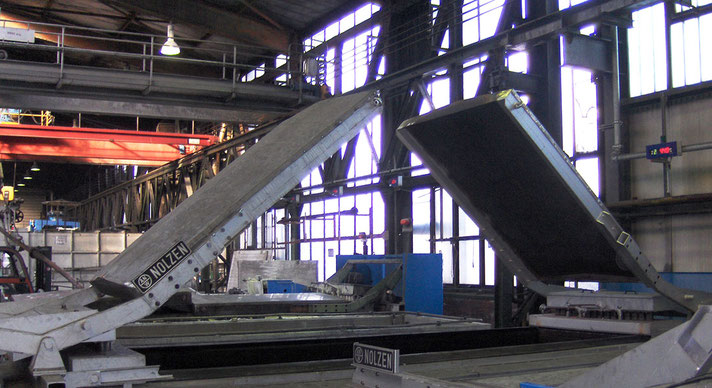

Cleaning baths and washing systems are used for the pre- or post-cleaning of components coated with emulsion. A high reproducibility of the heat treatment process as well as the compliance with environmental and occupational safety standards often make it necessary to remove adhesions from the components before the start of the heat treatment. In case of several charging stations, a capacity increase can be achieved by separate, removable heating and cooling hoods.
Procedures | cleaning of emulsion coated parts |
Media | water, cleaning emulsion |
Design | single or double-walled |
Charging | manual, also possible partially or fully automated |
Lid | swing or hinged lid, without lid |
Construction sizes | up to 200 m³ |
Temperature range |
up to 150° C |
Insulation | lightweight construction, with sheet covering |
Type | angular and rounded |
Design |
one, two or three chambers |
Heating type |
eIectrical |
Cooling | heat exchanger and cooling station |
Cleaning |
circulation pumps with nozzle blocks |
Drying |
via air jets |
Flow |
vertical or horizontal |
